USB0001DP, USB0005DP Datasheet - Kyocera

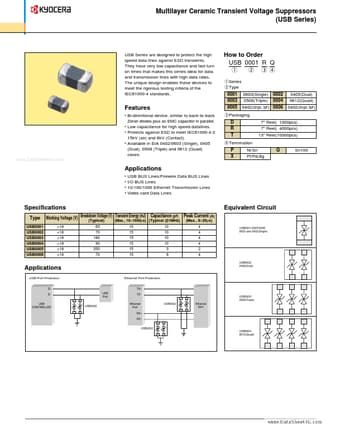

USB0001DP (USB000x) Multilayer Ceramic Transient Voltage Suppressors

Multilayer Ceramic Transient Voltage Suppressors (USB Series) USB Series are designed to protect the high speed data lines against ESD transients. They have very low capacitance and fast turn on times that makes this series ideal for data and transmission lines with high data rates. The unique design enables these devices to meet the rigorous testing criteria of the IEC61000-4 standards. How to Order USB 0001 R Q q qSeries wType 0001 0003 0005 D R T rTermination P X Ni/Sn Pt/Pd/Ag Q Sn100 0603.

USB0001DP Features

* Bi-directional device, similar to back-to-back Zener diodes plus an EMC capacitor in parallel.

* Low capacitance for high speed datalines.

* Protects against ESD to meet IEC61000-4-2 15kV (air) and 8kV (Contact).

* Available in EIA 0402/0603 (Single), 0405 (Dual), 0

USB0001DP, USB0005DP Datasheet

USB0001DP Datasheet Preview — This datasheet PDF includes multiple part numbers: USB0001DP, USB0005DP. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

USB0001DP, USB0005DP

Manufacturer:

Kyocera

File Size:

64.75 KB

Description:

(usb000x) multilayer ceramic transient voltage suppressors.

This datasheet PDF includes multiple part numbers: USB0001DP, USB0005DP. Please refer to the document for exact specifications by model.
