USB0412C - TVSarray Series

USB0412C Description

8700 E.Thomas Road Scottsdale, AZ 85251 Tel: (480) 941-6300 Fax: (480) 947-1503 USB0403C thru USB0424C TVSarray ™ Series .
(300 watt) This 4 pin 1 line bidirectional ULTRA LOW CAPACITANCE array is designed for use in applications requiring board level protection from volta.

USB0412C Features

* Protects 3.3 up through 24V Components Protects 1 line bidirectional Provides electrically isolated protection SOT-143 Packaging ULTRA LOW CAPACITANCE 5 pF MECHANICAL
* Molded SOT-143 Surface Mount Weight: .035

USB0412C Applications

* requiring board level protection from voltage transients caused by electrostatic discharge (ESD) as defined by IEC 1000-4-2, electrical fast transients (EFT) per IEC 1000-4-4 and effects of secondary lightning. These arrays are used to protect 1 discrete line utilizing pins (1,4 and 2,3). The S0T-14

📥 Download Datasheet

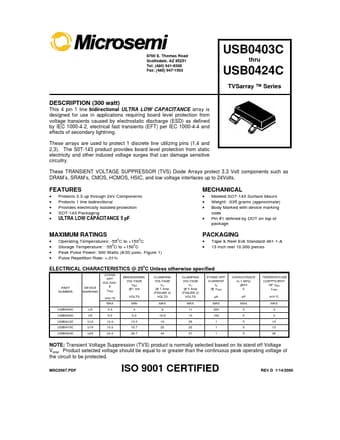

Preview of USB0412C PDF
datasheet Preview Page 2
