USB0424, USB0403, (USB0403 - USB0424C) LOW CAPACITANCE TVS ARRAY

05205 USB0403 thru USB0424C LOW CAPACITANCE TVS ARRAY APPLICATIONS ✔ Ethernet - 10/100 Base T ✔ Cellular Phones ✔ Audio & Video Inputs ✔ FireWire, S.

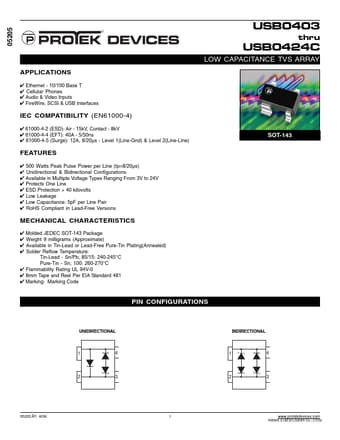

datasheet Preview Page 1 from Datasheet4u.com

USB0403_ProtekDevices.pdf

USB0424 Datasheet Preview — This datasheet PDF includes multiple part numbers: USB0424, USB0403. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

USB0424, USB0403

Manufacturer:

Protek Devices

File Size:

98.75 KB

Description:

(USB0403 - USB0424C) LOW CAPACITANCE TVS ARRAY

Note:

This datasheet PDF includes multiple part numbers: USB0424, USB0403.
Please refer to the document for exact specifications by model.

Features

* ✔ 500 Watts Peak Pulse Power per Line (tp=8/20µs) ✔ Unidirectional & Bidirectional Configurations ✔ Available in Multiple Voltage Types Ranging From 3V to 24V ✔ Protects One Line ✔ ESD Protection > 40 kilovolts ✔ Low Leakage ✔ Low Capacitance: 5pF per Line Pair ✔ RoHS Compliant in Lead-Free Versions

Applications

* ✔ Ethernet - 10/100 Base T ✔ Cellular Phones ✔ Audio & Video Inputs ✔ FireWire, SCSI & USB Interfaces IEC COMPATIBILITY (EN61000-4) ✔ 61000-4-2 (ESD): Air - 15kV, Contact - 8kV ✔ 61000-4-4 (EFT): 40A - 5/50ns ✔ 61000-4-5 (Surge): 12A, 8/20µs - Level 1(Line-Gnd) & Level 2(Line-Line) SOT-143 FEATUR
