HM1188FNL Datasheet - Pulse

HM1188FNL Transformers and Chokes

Automotive Ethernet Transformers and Chokes Meets AEC-Q200 Requirement Tested with PHY partners Operating Temperature: -40°C to +105°C Member of OPEN alliance Electrical Specifications 25°C Part Number Insertion Loss (dB MAX) Return Loss (dB MIN) Cross Talk (dB MIN) Differential to Common Mode Rejection (dB MIN) 1 - 100 MHZ 100 - 120 MHZ 1 - 5 MHZ 30 - 80 MHZ 1 MHZ 5 - 100 MHZ 5 - 200 MHZ HM1188FNL -1.0 dB -3.0 dB -18 dB -16+14.08LOG10 (f/30 MHZ) dB -62 dB -45+21 LOG10(F/30 MHZ) dB .

HM1188FNL Datasheet (329.85 KB)

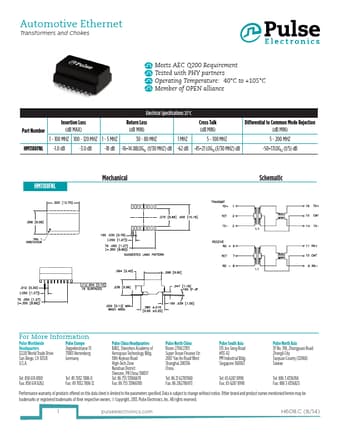

Preview of HM1188FNL PDF

Datasheet Details

Part number:

HM1188FNL

Manufacturer:

Pulse

File Size:

329.85 KB

Description:

Transformers and chokes.
