PA1005.040QNL Datasheet - Pulse

PA1005.040QNL SMT Current Sense Transformer

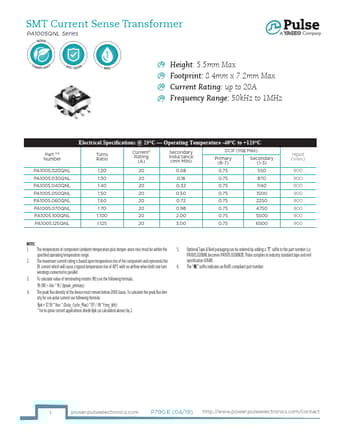

SMT Current Sense Transformer PA1005QNL Series Height: 5.5mm Max Footprint: 8.4mm x 7.2mm Max Current Rating: up to 20A Frequency Range: 50kHz to 1MHz Part 5,6 Number PA1005.020QNL PA1005.030QNL PA1005.040QNL PA1005.050QNL PA1005.060QNL PA1005.070QNL PA1005.100QNL PA1005.125QNL Electrical Specifications @ 25°C Operating Temperature -40°C to +125°C Turns Ratio Current2 Rating (A) Secondary Inductance (mH MIN) DCR (mΩ Max) Primary (8-7) Secondary (1-3) 1:20 20 0.08 0.75 550 .

PA1005.040QNL Datasheet (362.56 KB)
