QL68I6S-A Datasheet (164.51 KB)
QL68I6S-A
QSI
164.51 KB
Laser diode.

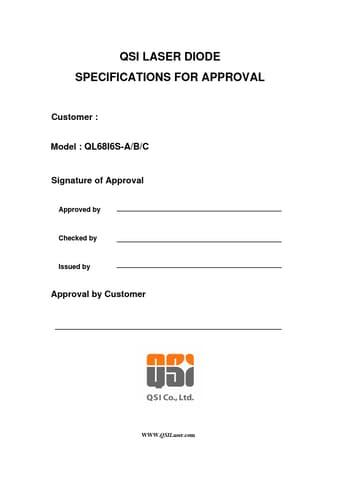

QSI LASER DIODE SPECIFICATIONS FOR APPROVAL
Customer : Model : QL68I6S-A/B/C Signature of Approval
Approved by Checked by Issued by
Approval by Custom.
* Visible Light Output : λp = 685nm Optical Power Output : 30 mW CW Package Type : TO-18 (5.6mmφ) Built-in Photo Diode for Monitoring Laser Output
* ELECTRICAL CONNECTION Bottom View Pin Configuration A LD cathod, PD anode (Fig. 1) B LD , PD anode (Fig. 2) C LD anode, PD cathod (Fig. 3)
