QT220

2 KEY QTOUCH SENSOR IC

QT220 Features

* spread-spectrum acquisition capability, external synchronization of acquire bursts, and fast and slow acquisition modes. These modes are enabled via high-value resistors connected to the SNS pins to ground or Vdd. These resistors are required in every circuit. There are two basic modes as shown in F

QT220 General Description

Sense pin (to Rs1+ Cs1) Sense pin (to Cs1 electrode) Do not connect Speed option Do not connect Output, key 1 Output, key 2 Ground Sync in and/or spread spectrum drive Unbonded internally Unbonded internally Do not connect Reset pin, active low. Can usually tie to Vdd. Power: +4.0 to +5.0V locally r.

QT220 Datasheet (351.90 KB)

Preview of QT220 PDF

Datasheet Details

Part number:

QT220

Manufacturer:

QUANTUM

File Size:

351.90 KB

Description:

2 key qtouch sensor ic.
www.DataSheet4U.com lQ z Two independent charge-transfer (‘QT’) touch keys z Individual outputs per channel - active high z Projects prox fields thro.

📁 Related Datasheet

QT2020 - 10 Gb/s Ethernet PHY Transceiver Chip (Quake Technologies)
THE HIGHL Y INTEGRATED SINGLE-CHIP QT2020 LOWERS COST , REDUCES POWER AND IMPROVES RELIABILITY WHILE OFFERING UNPRECEDENTED 10 GB/S PERFORMANCE AND SU.

QT2021 - 10 Gb/s Ethernet And Fibre Channel PHY Transceiver Chip (Quake Technologies)
THE HIGHLY INTEGRATED SINGLE-CHIP QT2021 LOWERS COST, REDUCES POWER AND IMPROVES RELIABILITY WHILE OFFERING UNPRECEDENTED 10 GB/S PERFORMANCE AND SUP.

QT240 - 4 KEY QTOUCH SENSOR IC (QUANTUM)
.. lQ z Four independent charge-transfer (‘QT’) touch keys z Individual outputs per channel - active high z Projects prox fields thr.

QT240-ISSG - 4 KEY QTOUCH SENSOR IC (Quantum)
lQ QT240-ISSG 4 KEY QTOUCH™ SENSOR IC Four independent charge-transfer (‘QT’) touch keys Individual outputs per channel - ac.

QT24A01 - 10/100/1000 Base-T Single Port Transformer Module (TNK)
10/100/1000Base-T Single Port Transformer Module Designed to meet IEEE802.3ab requirement Designed for Lead Free to meet IR255℃ peak requirement Prima.

QT24A03 - 1000 Base-T Single Port Transformer Module (TNK)
1000 Base-T Single Port Transformer Module Designed to meet IEEE802.3af requirement Designed to meet IR 255℃ peak requirement Primary inductance 350uH.

QT24A12 - 10/100/1000Base-T Single Port Transformer Module (TNK)
10/100/1000Base-T Single Port Transformer Module Designed to meet IEEE802.3ab requirement Designed to meet IR 255℃ peak requirement Primary inductance.

QT100 - CHARGE-TRANSFER IC (QUANTUM)
.. LQ 2V to 5V single supply operation 10µA low power mode @ 2V Self-calibrating on power-up Sensitivity easily ad.

TAGS

QT220 KEY QTOUCH SENSOR QUANTUM

Image Gallery

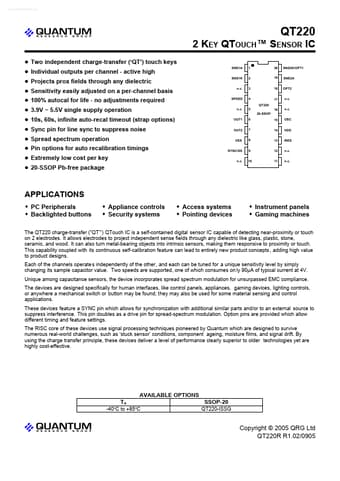

QT220 Datasheet Preview Page 2 QT220 Datasheet Preview Page 3
