QT24A01 10/100/1000 Base-T Single Port Transformer Module

10/100/1000Base-T Single Port Transformer Module Designed to meet IEEE802.3ab requirement Designed for Lead Free to meet IR255℃ peak requirement Primary inductance 350uH min with 8mA DC Bias RoHS Compliant Operating temperature range:0℃to+70℃ Storage temperature range:-25℃to+125℃ Electrical Specifications @ 25℃ Part Number QT24A01 Turn Ratio Tx Rx Insertion Loss 0.5~100MHz (dB Max) 1:1 1:1 -1.0 0.5-30 MHz -16 Return Loss (dB Min) 30.1-60 MHz -14 60.1-80 MHz -12 Cross Talk (dB Min) 0..

QT24A01 Datasheet (96.16 KB)

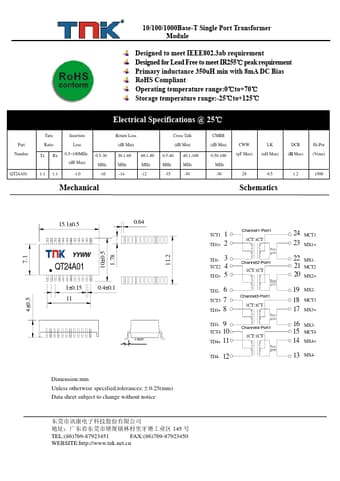

QT24A01 Datasheet Preview — Preview of QT24A01 PDF

Datasheet Details

Part number:

QT24A01

Manufacturer:

TNK

File Size:

96.16 KB

Description:

10/100/1000 base-t single port transformer module.
