QT24A03 Datasheet - TNK

QT24A03 1000 Base-T Single Port Transformer Module

1000 Base-T Single Port Transformer Module Designed to meet IEEE802.3af requirement Designed to meet IR 255℃ peak requirement Primary inductance 350uH min with 8mA DC Bias ROHS Compliant Operating temperature range:0℃to+70℃ Storage temperature range:-25℃to+125℃ Electrical Specifications @ 25℃ Part Number QT24A03 Turn Ratio Tx Rx 1:1 1:1 Insertion Loss 0.5~100MHz (dB Max) 0.5-30 MHz -1.0 -16 Return Loss (dB Min) 30.1-60 MHz -14 60.1-80 MHz -12 Cross Talk (dB Min) 0.5-40 MHz -35 40.1-1.

QT24A03 Datasheet (91.22 KB)

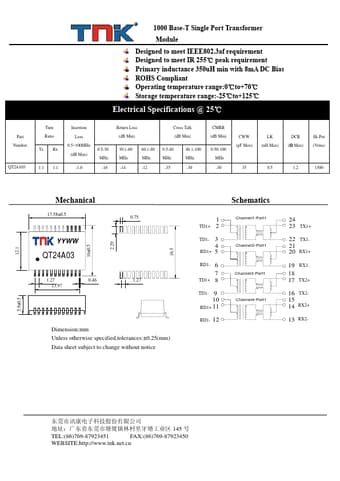

QT24A03 Datasheet Preview — Preview of QT24A03 PDF

Datasheet Details

Part number:

QT24A03

Manufacturer:

TNK

File Size:

91.22 KB

Description:

1000 base-t single port transformer module.
