QT24A12 10/100/1000Base-T Single Port Transformer Module

10/100/1000Base-T Single Port Transformer Module Designed to meet IEEE802.3ab requirement Designed to meet IR 255℃ peak requirement Primary inductance 350uH min with 8mA DC Bias ROHS Compliant Operating temperature range:0℃to+70℃ Storage temperature range:-25℃to+85℃ Electrical Specifications @ 25℃ Part Number Turn Ratio Tx Rx QT24A12 1CT:1CT 1CT:1CT Insertion Loss (dB Max) 1~100Mz -1.0 1-30 MHz -18 Return Loss (dB Min) 40 MHz -14.4 50 MHz -13.1 60-80 MHz -12 Cross Talk DCMR (dB Min.

QT24A12 Datasheet (51.26 KB)

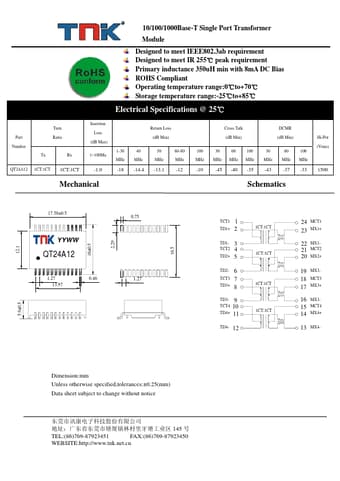

QT24A12 Datasheet Preview — Preview of QT24A12 PDF

Datasheet Details

Part number:

QT24A12

Manufacturer:

TNK

File Size:

51.26 KB

Description:

10/100/1000base-t single port transformer module.
