QPA0506 Datasheet, Amplifier, Qorvo

QPA0506 Features

  • Amplifier
  • Frequency Range: 5.0
      – 6.0 GHz
  • Output Power (PIN = 18 dBm): 36.5 dBm
  • PAE (PIN = 18 dBm): 53 %
  • Small Signal Gain: 27.4 dB

PDF File Details

Part number:

QPA0506

Manufacturer:

Qorvo

File Size:

819.53kb

Download:

📄 Datasheet

Description:

4watt c-band power amplifier. 4 Watt X-Band Power Amplifier 250 pcs. on 7 inch reel QPA0506 Evaluation Board Data Sheet Rev. A, March 2022 | Subject to change wit

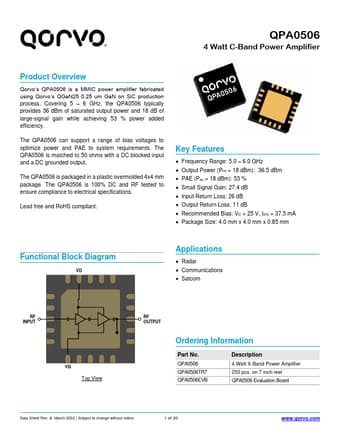

Datasheet Preview: QPA0506 📥 Download PDF (819.53kb)
Page 2 of QPA0506 Page 3 of QPA0506

QPA0506 Application

  • Applications
  • Radar
  • Communications
  • Satcom RF INPUT VG Top View RF OUTPUT Ordering Information Part No. QPA0506 QPA0
