QPA0106 18W GaN Power Amplifier

1 -6 GHz GaN Power Amplifier 250 pcs. on 7 inch reel Evaluation Board for QPA0106 Data Sheet Rev. F, September 2022 | Subject to change without notice 1 of 28 www.qorvo.com QPA0106 ® 1.0 * 6.0 GHz 18 W GaN Power Amplifier Absolute Maximum Ratings Parameter Drain Voltage (VD) Value /.

QPA0106 ® 1.0 6.0 GHz 18 W GaN Power Amplifier Product Overview Qorvo’s QPA0106 is a wideband power amplifier fabricated using Qorvo’s QGaN25 0.25 um GaN on SiC production process. Covering 1 6 GHz, the QPA0106 typically provides 42.7 dBm of saturated output power and 24 dB of large-signal gain while achieving greater than 40 % poweradded efficiency. The QPA0106 can support a variety of operating conditions to best support system requirements. With good thermal properties,.

QPA0106 Features

* Frequency Range: 1

* 6 GHz

* PSAT : 42.7 dBm (PIN = 19 dBm)

* PAE: > 40% (PIN = 19 dBm)

* Power Gain: 24 dB (PIN = 19 dBm)

* Small Signal Gain: > 31 dB

* Bias: VD = 22 V, IDQ = 1022 mA

* Package Dimensions: 7.00 x 7.00 x 0.85 mm Perfo

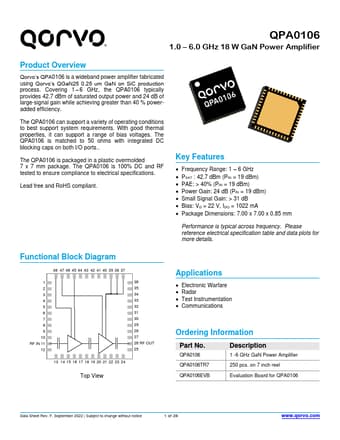

QPA0106 Datasheet (939.97 KB)

QPA0106 Datasheet Preview — Preview of QPA0106 PDF

Datasheet Details

Part number:

QPA0106

Manufacturer:

Qorvo

File Size:

939.97 KB

Description:

18w gan power amplifier.
