QPA0363A CASCADABLE SiGe HBT MMIC AMPLIFIER

Reference Designator Manufacturer Manufacturer's P/N Gain Block U1 QORVO QPA0363A CAP, 1uF, 10%, 25V, X7R, 1206 C1 Murata Electronics GRM31MR71E105KA01L CAP, 1000pF, 10%, 50V, X7R, 0402 C2 Murata Electronics GRM155R71H102KA01D CAP, 68pF, 5%, 50V, C0G, 0402 C3 Murata Electronics GR.

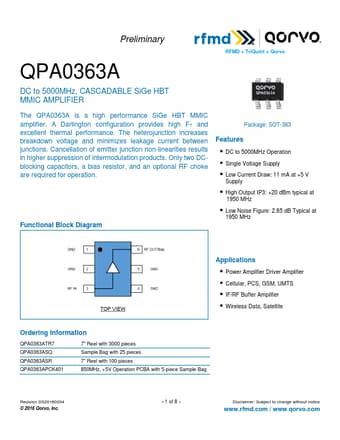

Preliminary QPA0363A RFMD + TriQuint = Qorvo DC to 5000MHz, CASCADABLE SiGe HBT MMIC AMPLIFIER The QPA0363A is a high performance SiGe HBT MMIC amplifier. A Darlington configuration provides high FT and excellent thermal performance. The heterojunction increases breakdown voltage and minimizes leakage current between junctions. Cancellation of emitter junction non-linearities results in higher suppression of intermodulation products. Only two DCblocking capacitors, a bias resistor, and an opt.

QPA0363A Features

* DC to 5000MHz Operation

* Single Voltage Supply

* Low Current Draw: 11 mA at +5 V Supply

* High Output IP3: +20 dBm typical at 1950 MHz

* Low Noise Figure: 2.85 dB Typical at 1950 MHz Applications

* Power Amplifier Driver Amplifier

* Cellular, PCS, GSM, UMTS

* IF/

QPA0363A Datasheet (694.74 KB)

QPA0363A Datasheet Preview — Preview of QPA0363A PDF

Datasheet Details

Part number:

QPA0363A

Manufacturer:

Qorvo

File Size:

694.74 KB

Description:

Cascadable sige hbt mmic amplifier.
