QPA2225D - 0.4 Watt GaN Driver Amplifier

Description

28 

Samples (2 pcs.

Data Sheet Rev.

 38 GHz 0.4 Watt GaN Driver Amplifier Absolute Maximum Ratings Parameter Drain

Features

  • Frequency Range: 28  .
  • 38 GHz.
  • PSAT (PIN = 13 dBm): > 26 dBm.
  • Small Signal Gain: > 23 dB.
  • IM3 (POUT/Tone = 20 dBm): -20 dBc.
  • Bias: CW, VD = +20 V, IDQ = 64 mA, VG = -2.5 V typ.
  • Die Dimensions: 1.65 x 0.67 x 0.05 mm Performance is typical across frequency. Please reference electrical specification table and data plots for more details. Functional Block Diagram.

📥 Download Datasheet

Datasheet preview – QPA2225D

Datasheet Details

Part number QPA2225D
Manufacturer Qorvo
File Size 1.03 MB
Description 0.4 Watt GaN Driver Amplifier
Datasheet download datasheet QPA2225D Datasheet

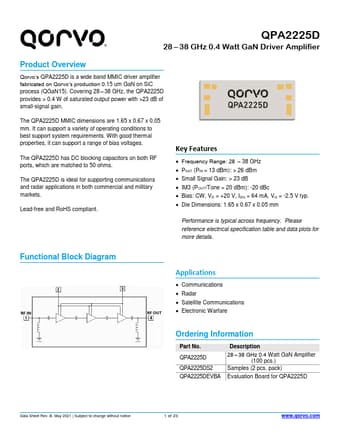

Additional preview pages of the QPA2225D datasheet.
