TGA2576-2-FL 40W GaN Power Amplifier

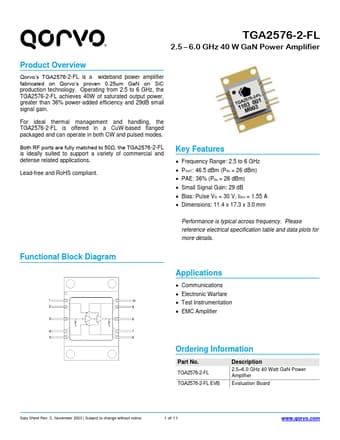

2.5 *6.0 GHz 40 Watt GaN Power Amplifier Evaluation Board Data Sheet Rev. C, November 2023 | Subject to change without notice 1 of 11 www.qorvo.com ® Absolute Maximum Ratings Parameter Rating Drain Voltage (VD) 40 V Gate Voltage (VG) *8 to 0 V Drain Current (ID) 5000 mA .

TGA2576-2-FL ® 2.5 6.0 GHz 40 W GaN Power Amplifier Product Overview Qorvo’s TGA2576-2-FL is a wideband power amplifier fabricated on Qorvo’s proven 0.25um GaN on SiC production technology. Operating from 2.5 to 6 GHz, the TGA2576-2-FL achieves 40W of saturated output power, greater than 36% power-added efficiency and 29dB small signal gain. For ideal thermal management and handling, the TGA2576-2-FL is offered in a CuW-based flanged packaged and can operate in both CW and pulsed mo.

TGA2576-2-FL Features

* Frequency Range: 2.5 to 6 GHz

* PSAT: 46.5 dBm (PIN = 26 dBm)

* PAE: 36% (PIN = 26 dBm)

* Small Signal Gain: 29 dB

* Bias: Pulse VD = 30 V, IDQ = 1.55 A

* Dimensions: 11.4 x 17.3 x 3.0 mm Performance is typical across frequency. Please reference ele

TGA2576-2-FL Datasheet (570.77 KB)

TGA2576-2-FL Datasheet Preview — Preview of TGA2576-2-FL PDF

Datasheet Details

Part number:

TGA2576-2-FL

Manufacturer:

Qorvo

File Size:

570.77 KB

Description:

40w gan power amplifier.
