TGA2597 Datasheet, Amplifier, Qorvo

TGA2597 Features

  • Amplifier
  • Frequency Range: 2-6 GHz
  • Output Power: > 31.5 dBm (PIN = 18 dBm)
  • PAE: > 31 % (PIN = 18 dBm)
  • Large Signal Gain: > 13.5 dB (PIN = 18 dBm)

PDF File Details

Part number:

TGA2597

Manufacturer:

Qorvo

File Size:

439.54kb

Download:

📄 Datasheet

Description:

Gan driver amplifier. Qorvo's TGA2597 is a driver amplifier fabricated on Qorvo's QGAN25 0.25 um GaN on SiC production process. The TGA2597 operates from 2

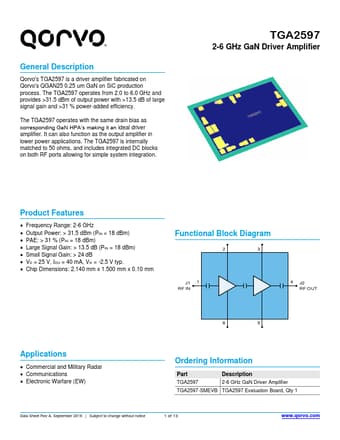

Datasheet Preview: TGA2597 📥 Download PDF (439.54kb)
Page 2 of TGA2597 Page 3 of TGA2597

TGA2597 Application

  • Applications The TGA2597 is internally matched to 50 ohms, and includes integrated DC blocks on both RF ports allowing for simple system integratio
