TGA2597-SM

GaN Driver Amplifier

TGA2597-SM Features

* Frequency Range: 2 - 6 GHz

* Small Signal Gain: > 24 dB

* Power: > 32 dBm

* PAE: > 31 %

* IM3: < -24 dBc

* Bias: VD = 25 V, IDQ = 40 mA

* Package Dimensions: 4.0 x 4.0 x 0.85 mm Functional Block Diagram General Description TriQuint's TGA259

TGA2597-SM General Description

TriQuint's TGA2597-SM is a packaged driver amplifier fabricated on TriQuint's TQGaN25 0.25um GaN on SiC production process. The TGA2597-SM operates from 2.0 to 6.0GHz and provides 32 dBm of output power with14 dB of large signal gain and 31 % poweradded efficiency. Using GaN MMIC technology and plas.

TGA2597-SM Datasheet (1.88 MB)

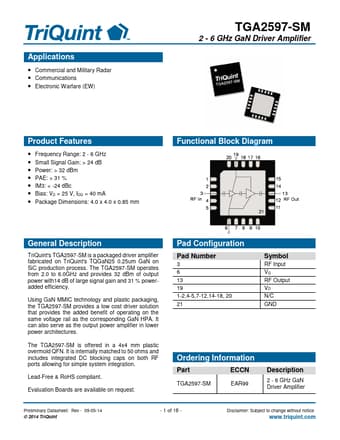

Preview of TGA2597-SM PDF

Datasheet Details

Part number:

TGA2597-SM

Manufacturer:

TriQuint Semiconductor

File Size:

1.88 MB

Description:

Gan driver amplifier.
Applications

* Commercial and Military Radar

* Communications

* Electronic Warfare (EW) TGA2597-SM 2 - 6 GHz GaN Driver Ampli.
