TGA2575

Ka-Band 3 Watt Power Amplifier

TGA2575 Features

* Frequency Range: 32.0

* 38.0 GHz

* Power: 35.5 dBm PSAT

* PAE: 22%

* Gain: 19 dB

* Return Loss: 12 dB

* Bias: Vd = 6 V, Id = 2.1 A, Vg = -0.60 V Typical

* Dimensions: 5.4 x 4.1 x 0.05 mm Performance is typical across frequency. Pleas

TGA2575 General Description

Qorvo’s TGA2575 is a wideband power amplifier fabricated on Qorvo’s production released 0.15um power pHEMT process. Operating from 32 GHz to 38 GHz, it achieves 35.5 dBm saturated output power, 22% PAE and 19 dB small signal gain over most of the band. Fully matched to 50 ohms, RoHS compliant and wi.

TGA2575 Datasheet (616.42 KB)

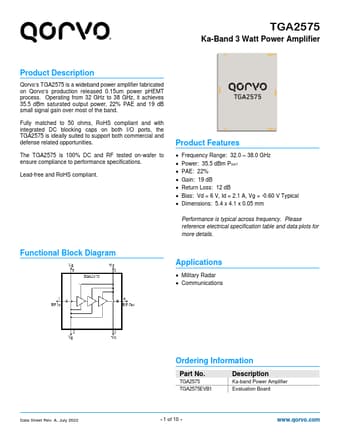

Preview of TGA2575 PDF

Datasheet Details

Part number:

TGA2575

Manufacturer:

Qorvo

File Size:

616.42 KB

Description:

Ka-band 3 watt power amplifier.
