TGA2595-CP

8W GaN Power Amplifier

TGA2595-CP Features

* Frequency Range: 27.5 - 31 GHz

* Pout: 39 dBm (PIN = 18 dBm)

* PAE: > 22 % (PIN = 18 dBm)

* Power Gain: 21 dB (PIN = 18 dBm)

* IM3 @ 30 dBm/Tone =

* 27 dBc

* IM5 @ 30 dBm/Tone =

* 46 dBc

* Bias: VD = 20 V, IDQ = 560 mA, VG =

* 2.5 V typical

* Pa

TGA2595-CP General Description

TriQuint’s TGA2595-CP is a balanced Ka-Band power amplifier fabricated on TriQuint’s TQGaN15 0.15 um GaN on SiC process. The balanced configuration supports low return loss and improves robustness into non-ideal loads. Operating from 27.5 to 31 GHz, the TGA2595-CP achieves 39 dBm saturated output po.

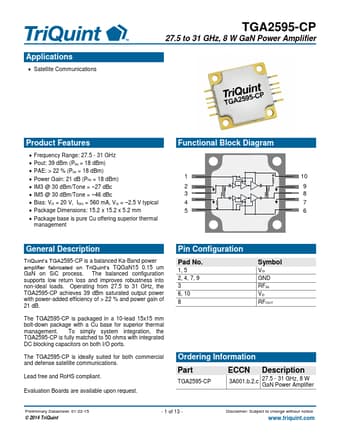

TGA2595-CP Datasheet (442.39 KB)

Preview of TGA2595-CP PDF

Datasheet Details

Part number:

TGA2595-CP

Manufacturer:

TriQuint Semiconductor

File Size:

442.39 KB

Description:

8w gan power amplifier.
