TGA2590

30W GaN Power Amplifier

TGA2590 Features

* Frequency Range: 6 - 12 GHz

* Output Power: > 45 dBm (PIN = 23 dBm)

* PAE: > 25 % (PIN = 23 dBm)

* Large Signal Gain: > 22.0 dB

* VD = 20 V, IDQ = 2.0 A, VG = -2.4 V typ.

* Chip Dimensions: 5.4 mm x 7.0 mm x 0.10 mm Functional Block Diagram General Description TriQuint’s

TGA2590 General Description

TriQuint’s TGA2590 is a wideband power amplifier fabricated on TriQuint’s production 0.25um GaN on SiC process. The TGA2590 operates from 6 - 12GHz and provides greater than 30W of saturated output power with greater than 22 dB of large signal gain and greater than 25% power-added efficiency. The TG.

TGA2590 Datasheet (548.38 KB)

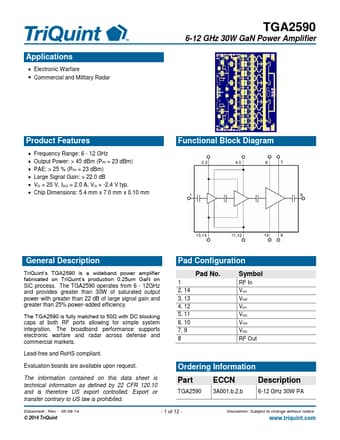

Preview of TGA2590 PDF

Datasheet Details

Part number:

TGA2590

Manufacturer:

TriQuint Semiconductor

File Size:

548.38 KB

Description:

30w gan power amplifier.
