TGA2594-HM Datasheet, Amplifier, TriQuint Semiconductor

TGA2594-HM Features

  • Amplifier
  • Frequency Range: 27 
      – 31 GHz
  • POUT: 36.5 dBm at PIN = 14 dBm
  • PAE: 25 % CW
  • Smal

PDF File Details

Part number:

TGA2594-HM

Manufacturer:

TriQuint Semiconductor

File Size:

1.08MB

Download:

📄 Datasheet

Description:

Gan power amplifier. Qorvo’s TGA2594-HM is a packaged power amplifier fabricated on Qorvo’s 0.15 um GaN on SiC process (QGaN15). Operating from 27 to 31 G

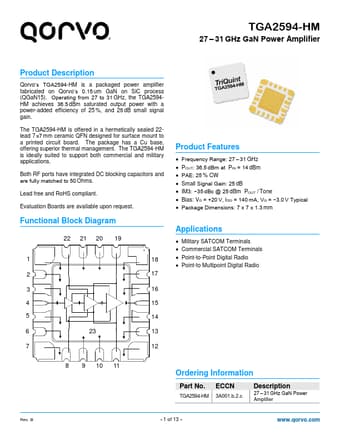

Datasheet Preview: TGA2594-HM 📥 Download PDF (1.08MB)
Page 2 of TGA2594-HM Page 3 of TGA2594-HM

TGA2594-HM Application

  • Applications Both RF ports have integrated DC blocking capacitors and are fully matched to 50 Ohms. Lead free and RoHS compliant. Evaluation Boards
