TGA2594

27 - 31GHz 5W GaN Power Amplifier

TGA2594 Features

* Frequency Range: 27 to 31 GHz

* POUT: 36.5 dBm (PIN = 18 dBm), CW

* PAE: 28 % (PIN = 18 dBm), CW

* Small Signal Gain: 23 dB

* Return Loss: 10 dB

* IM3 @ 25 dBm/tone:

* 35 dBc

* IM5 @ 25 dBm/tone:

* 45 dBc

* Bias: VD = +20 V, IDQ = 140 mA, VG ≈

TGA2594 General Description

Qorvo’s TGA2594 is a Ka-band power amplifier fabricated on Qorvo’s 0.15 um GaN on SiC process. Operating from 27 to 31 GHz, it achieves 5W saturated output power with an efficiency of 28 % PAE, and 23 dB small signal gain. Along with excellent linear characteristics, the TGA2594 is ideally suited to.

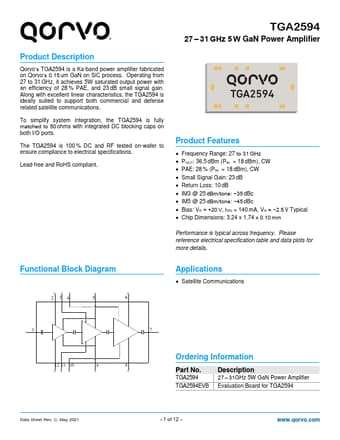

TGA2594 Datasheet (820.64 KB)

Preview of TGA2594 PDF

Datasheet Details

Part number:

TGA2594

Manufacturer:

qorvo

File Size:

820.64 KB

Description:

27 - 31ghz 5w gan power amplifier.
