TGA2597

GaN Driver Amplifier

TGA2597 Features

* Frequency Range: 2-6 GHz

* Output Power: > 31.5 dBm (PIN = 18 dBm)

* PAE: > 31 % (PIN = 18 dBm)

* Large Signal Gain: > 13.5 dB (PIN = 18 dBm)

* Small Signal Gain: > 24 dB

* VD = 25 V, IDQ = 40 mA, VG = -2.5 V typ.

* Chip Dimensions: 2.140 mm

TGA2597 General Description

TriQuint's TGA2597 is a driver amplifier fabricated on TriQuint's TQGaN25 0.25um GaN on SiC production process. The TGA2597 operates from 2.0 to 6.0 GHz and provides > 31.5 dBm of output power with > 13.5 dB of large signal gain and > 31 % power-added efficiency. The TGA2597 operates with the same d.

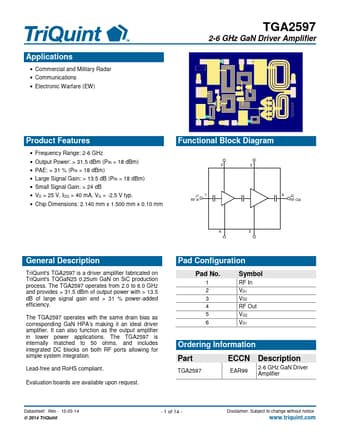

TGA2597 Datasheet (894.84 KB)

Preview of TGA2597 PDF

Datasheet Details

Part number:

TGA2597

Manufacturer:

TriQuint Semiconductor

File Size:

894.84 KB

Description:

Gan driver amplifier.
Applications

* Commercial and Military Radar

* Communications

* Electronic Warfare (EW) TGA2597 2-6 GHz GaN Driver Amplifier .
