TGA2590-CP

30W GaN Power Amplifier

TGA2590-CP Features

* Frequency Range: 6 - 12 GHz

* POUT: > 45 dBm (PIN = 23 dBm)

* PAE: > 30 % (PIN = 23 dBm)

* Small Signal Gain: 35 dB

* Bias: VD = 20 V (CW), IDQ = 2 A, VG =

* 2.4 V typ.

* Package Dimensions: 15.24 x 15.24 x 3.5 mm Functional Block Diagram 1 10 29 38 47 56 General D

TGA2590-CP General Description

TriQuint's TGA2590-CP is a wideband MMIC power amplifier fabricated on TriQuint's production 0.25um GaN on SiC process. The TGA2590-CP operates from 6-12GHz and provides 30W of saturated output power with >22dB of large signal gain and >30% power-added efficiency. The TGA2590-CP is offered in a Cu-b.

TGA2590-CP Datasheet (868.43 KB)

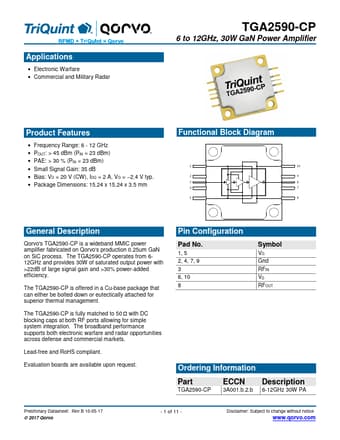

Preview of TGA2590-CP PDF

Datasheet Details

Part number:

TGA2590-CP

Manufacturer:

TriQuint Semiconductor

File Size:

868.43 KB

Description:

30w gan power amplifier.
