TGA2227

GaN Low Noise Amplifier

qorvo

TGA2227 Features

* Frequency Range: 2

* 22 GHz

* High Input Power Survivability: 40 dBm

* Noise Figure: 2.0 dB (midband)

* Gain > 15 dB

* IM3:

* 31 dBc ( PIN / tone=

* 4 dBm, Δf = 10 MHz)

* P1dB > 20 dBm

* Bias: : VD = +8 V, IDQ = 125 mA

TGA2227 General Description

The Qorvo TGA2227 is a wideband, low noise amplifier fabricated on Qorvo’s QGaN15 production GaN-on-SiC process. The TGA2227 operates from 2

* 22 GHz and provides > 15 dB of small signal gain with 2 dB of mid-band noise figure. The TGA2227 can be biased over a wide range of voltage with litt.

TGA2227 Datasheet (607.52 KB)

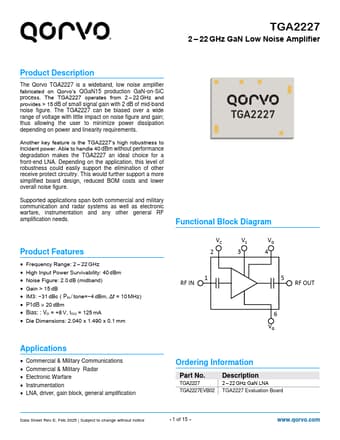

TGA2227 Datasheet Preview — Preview of TGA2227 PDF

Datasheet Details

Part number:

TGA2227

Manufacturer:

qorvo

File Size:

607.52 KB

Description:

Gan low noise amplifier.
