TGA2237 Datasheet - TriQuint Semiconductor

10W GaN Power Amplifier

TGA2237 Features

* Frequency Range: 0.03

* 2.5GHz

* PSAT: 40dBm at PIN = 27dBm

* P1dB: >32dBm

* PAE: >52%

* Large Signal Gain: 13dB

* Small Signal Gain: 19dB

* IM3 @ 120mA POUT< 33dBm/tone: -30dBc

* IM5 @ 120mA POUT< 33dBm/tone: -30dBc

* Bias: VD = 30V, IDQ = 360mA, VG = -

TGA2237 General Description

TriQuint’s TGA2237 is a wideband distributed amplifier fabricated on TriQuint’s production 0.25um GaN on SiC process. The TGA2237 operates from 0.03 * 2.5GHz and provides 10W of saturated output power with 13dB of large signal gain and greater than 52% power-added efficiency. The broadband p.

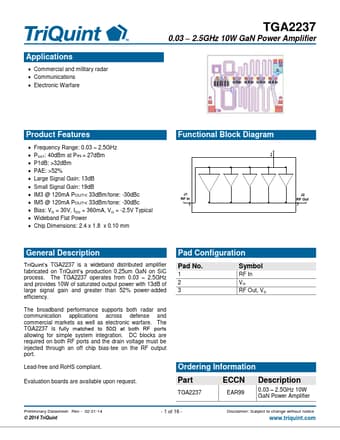

TGA2237 Datasheet (600.69 KB)

TGA2237 Datasheet Preview — Preview of TGA2237 PDF

Datasheet Details

Part number:

TGA2237

Manufacturer:

TriQuint Semiconductor

File Size:

600.69 KB

Description:

10w gan power amplifier.
Applications Commercial and military radar Communications Electronic Warfare TGA2237 0.03 2.5GHz 10W GaN Power Amplifier .
