TGA2239 - 35W GaN Power Amplifier

Product Overview

TriQuint Semiconductor

Datasheet Details

Part number	TGA2239
Manufacturer	TriQuint Semiconductor
File Size	657.15 KB
Description	35W GaN Power Amplifier
Datasheet	TGA2239 Datasheet

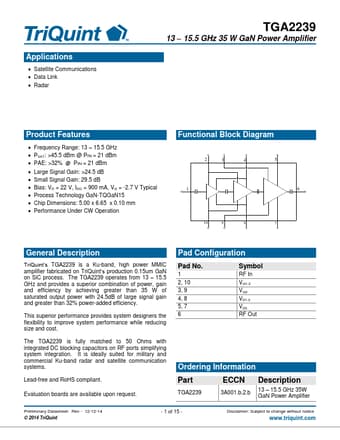

Additional preview pages of the TGA2239 datasheet.

Product details

Description

TriQuint’s TGA2239 is a Ku-band, high power MMIC amplifier fabricated on TriQuint’s production 0.15um GaN on SiC process. 15.5 GHz and provides a superior combination of power, gain and efficiency by achieving greater than 35 W of saturated output power with 24.5dB of large signal gain and greater than 32% power-added efficiency.

Features

Frequency Range: 13.
15.5 GHz.
PSAT: >45.5 dBm @ PIN = 21 dBm.
PAE: >32% @ PIN = 21 dBm.
Large Signal Gain: >24.5 dB.
Small Signal Gain: 29.5 dB.
Bias: VD = 22 V, IDQ = 900 mA, VG = -2.7 V Typical.
Process Technology GaN-TQGaN15.
Chip Dimensions: 5.00 x 6.65 x 0.10 mm.
Performance Under CW Operation Functional Block Diagram 23 4 5 1 10 9 8 7 6 General.
