TGA2239-CP

50W GaN Power Amplifier

TGA2239-CP Features

* Frequency Range: 13.4 

*  15.5 GHz

* POUT: >45.5 dBm (PIN = 22 dBm)

* PAE: > 31 % (PIN = 22 dBm)

* Small Signal Gain: > 30 dB

* IM3: <

* 19 dBc @ 38 dBm POUT / Tone

* Bias: VD = +28 V, IDQ = 900 mA, VG =

* 2.7 V Typical

TGA2239-CP General Description

Qorvo’s TGA2239-CP is a 3-stage, 50 W power amplifier operating over the 13.4 to 15.5 GHz band. Fabricated on Qorvo’s production 0.15 um GaN on SiC technology, this high performance amplifier offers greater than 30 dB smallsignal gain and greater than 31 % power-added efficiency, allowing the system.

TGA2239-CP Datasheet (567.34 KB)

Preview of TGA2239-CP PDF

Datasheet Details

Part number:

TGA2239-CP

Manufacturer:

Qorvo

File Size:

567.34 KB

Description:

50w gan power amplifier.

📁 Related Datasheet

TGA2239 35W GaN Power Amplifier (TriQuint Semiconductor)

TGA2237 10W GaN Power Amplifier (TriQuint Semiconductor)

TGA2237-SM 10W GaN Power Amplifier (TriQuint Semiconductor)

TGA2237-SM 10W GaN Power Amplifier (Qorvo)

TGA2238 60W GaN Power Amplifier (Qorvo)

TGA2214 2 to 18 GHz 5W GaN Power Amplifier (TriQuint Semiconductor)

TGA2216-SM 10W GaN Power Amplifier (TriQuint Semiconductor)

TGA2227 2-22 GHz GaN Low Noise Amplifier (TriQuint Semiconductor)

TGA2227 GaN Low Noise Amplifier (qorvo)

TGA2227-SM GaN Low Noise Amplifier (Qorvo)

TAGS

TGA2239-CP 50W GaN Power Amplifier Qorvo

Image Gallery

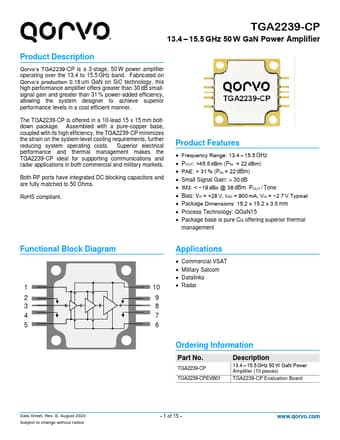

TGA2239-CP Datasheet Preview Page 2 TGA2239-CP Datasheet Preview Page 3
