TGA2227 Datasheet, Amplifier, TriQuint Semiconductor

TGA2227 Features

  • Amplifier
  • Frequency Range: 2 
      – 22 GHz
  • High Input Power Survivability: 40 dBm
  • Noise Figure: 2.0 dB (midband)
  • Gain > 15 dB
  • IM3: -31

PDF File Details

Part number:

TGA2227

Manufacturer:

TriQuint Semiconductor

File Size:

1.21MB

Download:

📄 Datasheet

Description:

2-22 ghz gan low noise amplifier. The Qorvo TGA2227 is a wideband, low noise amplifier fabricated on Qorvo’s TQGaN15 production GaN-on-SiC process. The TGA2227 operate

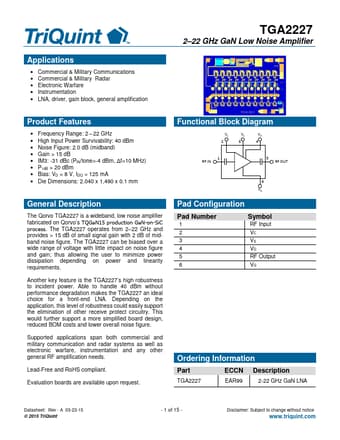

Datasheet Preview: TGA2227 📥 Download PDF (1.21MB)
Page 2 of TGA2227 Page 3 of TGA2227

TGA2227 Application

  • Applications
  • Commercial & Military Communications
  • Commercial & Military Radar
  • Electronic Warfare
  • Instrumenta

TAGS

TGA2227
2-22
GHz
GaN
Low
Noise
Amplifier
TriQuint Semiconductor
