RF3374 Datasheet - RF Micro Devices

GENERAL PURPOSE AMPLIFIER

RF3374 Features

* DC to >6000MHz Operation

* Internally Matched Input and Output

* 20dB Small Signal Gain

* +32dBm Output IP3

* +18dBm Output Power 1 RF IN GND 4 2 GND 3 RF OUT Ordering Information RF3374 General Purpose Amplifier RF3374PCBA-410 Fully Assembled Evaluation

RF3374 General Description

The RF3374 is a general purpose, low-cost RF amplifier IC. The device is manufactured on an advanced Gallium Arsenide Heterojunction Bipolar Transistor (HBT) process, and has been designed for use as an easily-cascadable 50 Ω gain block. Applications include IF and RF amplification in wireless voice.

RF3374 Datasheet (164.14 KB)

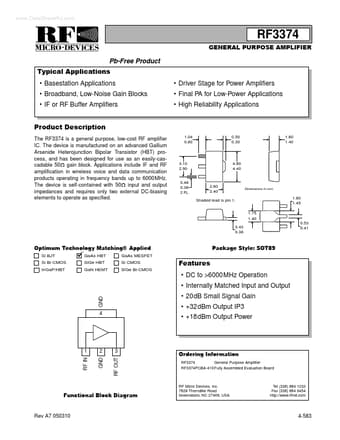

RF3374 Datasheet Preview — Preview of RF3374 PDF

Datasheet Details

Part number:

RF3374

Manufacturer:

RF Micro Devices

File Size:

164.14 KB

Description:

General purpose amplifier.
www.DataSheet4U.com RF3374 0 Pb-Free Product Typical Applications Basestation Applications Broadband, Low-Noise Gain Blocks <.
