RF3300-3 LINEAR AMPLIFIER MODULE

The RF3300-3 is a high-power, high-efficiency linear amplifier IC targeting 3V handheld systems. The device is manufactured on an advanced Gallium Arsenide Heterojunction Bipolar Transistor (HBT) process, and has been designed for use as the final RF amplifier in dual-mode 3V CDMA handheld digital c.

RF3300-3 Features

* Single 3V Supply with Internal VREF

* Integrated Power Detector

* 25dB Linear Gain

* 40mA Idle Current (Low Power Mode) VMODE PA_ON VCC3 1 12 11 Pwr Det 10 PDET_OUT

* Temperature Compensating Bias Circuit

* Integrated PA Enable Switch GND 2 B

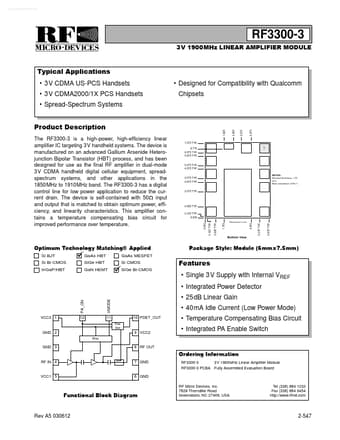

RF3300-3_RFMicroDevices.pdf

Preview of RF3300-3 PDF
RF3300-3 Datasheet Preview Page 2 RF3300-3 Datasheet Preview Page 3

Datasheet Details

Part number:

RF3300-3

Manufacturer:

RF Micro Devices

File Size:

100.00 KB

Description:

Linear amplifier module.
