RF3321PCBA REVERSE PATH HIGH OUTPUT POWER PROGRAMMABLE GAIN AMPLIFIER

RF3321PCBA Description

Preliminary RF3321 REVERSE PATH HIGH OUTPUT POWER PROGRAMMABLE GAIN AMPLIFIER 2 Typical Applications * Euro-DOCSIS/DOCSIS Cable Modems <.
RF3321 Absolute Maximum Ratings Parameter Supply Voltage (VCC1) Supply Voltage (VCC2) Input RF Level Operating Ambient Temperature Storage Temperatur.

RF3321PCBA Features

* Differential Input and Output
* 31dB Maximum Voltage Gain
* -25dB Minimum Voltage Gain
* 5MHz to 65MHz Operation
* Sophisticated Power Management
* DOCSIS 1.1 RF Compliant 16 Power Control GND NC NC VOUT VOUTB SDA CS SCLK 15 14 13 12 11 Gain Cont

RF3321PCBA Applications

* Euro-DOCSIS/DOCSIS Cable Modems
* CATV Set-Top Boxes
* Telephony Over Cable
* Home Networks
* Automotive/Mobile Multimedia
* Coaxial and Twisted Pair Line Driver 3 -A- The RF3321 is a variable gain amplifier for use in CATV reverse path (upstream)

📥 Download Datasheet

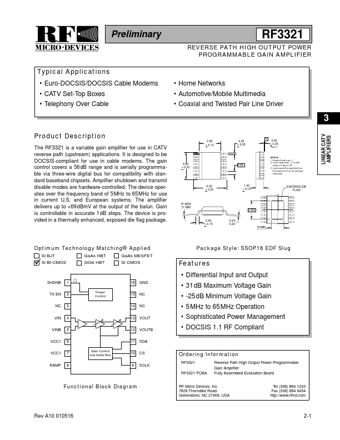

Preview of RF3321PCBA PDF
