RF3300-2 LINEAR AMPLIFIER MODULE

The RF3300-2 is a high-power, high-efficiency linear amplifier module targeting 3V handheld systems. The device is manufactured on an advanced Gallium Arsenide Heterojunction Bipolar Transistor (HBT) process, and has been designed for use as the final RF amplifier in dualmode 3V CDMA/AMPS handheld d.

RF3300-2 Features

* Single 3V Supply with Internal VREF

* Integrated Power Detect Circuit

* 27dB Linear Gain

* 55mA Idle Current VMODE PA_ON VCC3 1 12 11 Pwr Det Bias 10 PDET_OUT

* Temperature Compensating Bias Circuit

* Integrated PA Enable Switch GND 2 9 GND

RF3300-2_RFMicroDevices.pdf

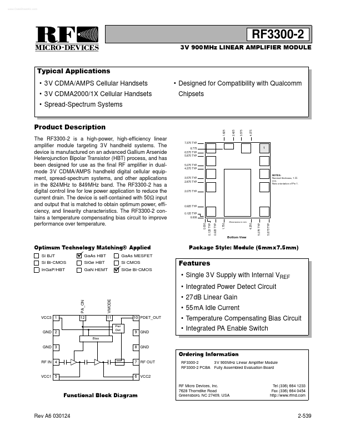

Preview of RF3300-2 PDF
RF3300-2 Datasheet Preview Page 2 RF3300-2 Datasheet Preview Page 3

Datasheet Details

Part number:

RF3300-2

Manufacturer:

RF Micro Devices

File Size:

121.30 KB

Description:

Linear amplifier module.
