RF3320PCBA Datasheet - RF Micro Devices

RF3320PCBA - CABLE REVERSE PATH PROGRAMMABLE GAIN AMPLIFIER

RF3320 Absolute Maximum Ratings Parameter Supply Voltage Input RF Level Operating Ambient Temperature Storage Temperature Humidity Maximum Power Dissipation Maximum TJ Preliminary Rating -0.5 to +6.0 12 -40 to +85 -40 to +150 80 0.5 150 Unit VDC dBm °C °C % W °C Caution! ESD sensitive device. RF.
Preliminary RF3320 CABLE REVERSE PATH PROGRAMMABLE GAIN AMPLIFIER 3 Typical Applications Euro-DOCSIS/DOCSIS Cable Modems CATV Set-Top Boxes Telephony Over Cable Home Networks Automotive/Mobile Multimedia Coaxial and Twisted Pair Line Driver 3 -A- The RF3320 is a variable gain amplifier for use in CATV reverse path (upstream) applications. It is DOCSIS-compliant for use in cable modems. The gain control covers a 58dB range and is se.

RF3320PCBA Features

* Single 5V Supply

* Differential Input and Output

* -30dB to +28dB Voltage Gain Range

* 5MHz to 65MHz Operation

* Sophisticated Power Management

* DOCSIS 1.1 RF Compliant 16 Power Control GND NC NC VOUT VOUTB SDA CS SCLK 15 14 13 12 11 Gain Contro

RF3320PCBA_RFMicroDevices.pdf

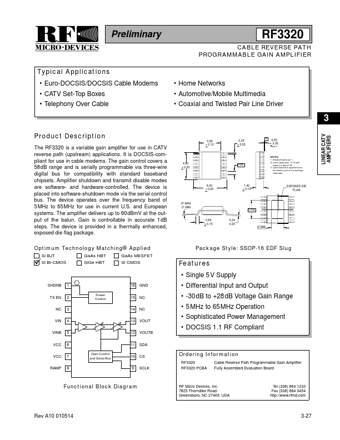

Preview of RF3320PCBA PDF
