RF3336D Datasheet - RF Monolithics

RF3336D SAW Filter

RF3336D Ideal Front-End Filter for European Wireless Receivers Low-Loss, Coupled-Resonator Quartz Design Simple External Impedance Matching Pb Complies with Directive 2002/95/EC (RoHS) 868.35 MHz SAW Filter The RF3336D is a low-loss, compact, and economical surface-acoustic-wave (SAW) filter designed to provide front-end selectivity in 868.35 MHz receivers. Receiver designs using this filter include superhet with 10.7 MHz or 500 kHz IF, direct conversion.

RF3336D Datasheet (117.81 KB)

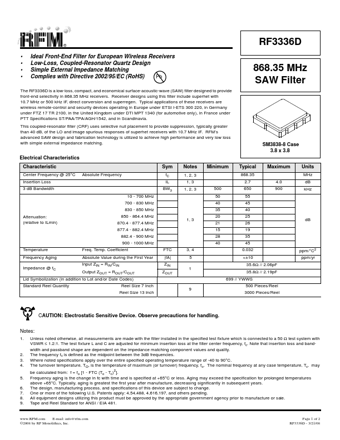

RF3336D Datasheet Preview — Preview of RF3336D PDF

Datasheet Details

Part number:

RF3336D

Manufacturer:

RF Monolithics

File Size:

117.81 KB

Description:

Saw filter.
