RF3330 Datasheet - RF Micro Devices

RF3330 IF GAIN CONTROLLED AMPLIFIER

TEXT * RF3330 Absolute Maximum Ratings Parameter Supply Voltage Operating Ambient Temperature Storage Temperature Preliminary Rating 7 -40 to +85 -60 to +150 Unit V °C °C Caution! ESD sensitive device. RF Micro Devices believes the furnished information is correct and accurate at the time o.

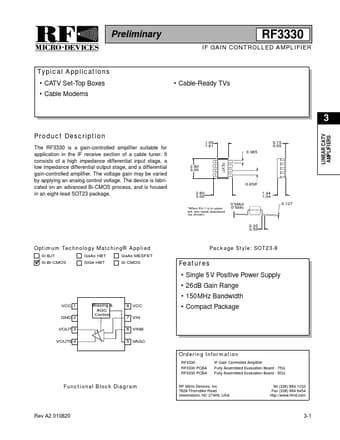

Preliminary 3 Typical Applications CATV Set-Top Boxes Cable Modems Cable-Ready TVs RF3330 IF GAIN CONTROLLED AMPLIFIER 3 1.59 1.61 0.365 0.15 0.05 The RF3330 is a gain-controlled amplifier suitable for application in the IF receive section of a cable tuner. It consists of a high impedance differential input stage, a low impedance differential output stage, and a differential gain-controlled amplifier. The voltage gain may be varied by applying an analog control v.

RF3330 Features

* Single 5V Positive Power Supply

* 26dB Gain Range

* 150MHz Bandwidth VCC 1 GND 2 VOUT 3 VOUTB 4 Biasing & AGC Control 8 VCC 7 VIN 6 VINB 5 VAGC

* Compact Package Ordering Information RF3330 RF3330 PCBA RF3330 PCBA IF Gain Controlled Amplifier Fully Assembled Ev

RF3330 Datasheet (143.33 KB)

RF3330 Datasheet Preview — Preview of RF3330 PDF

Datasheet Details

Part number:

RF3330

Manufacturer:

RF Micro Devices

File Size:

143.33 KB

Description:

If gain controlled amplifier.
