RF3315 Datasheet - RF Micro Devices

RF3315 ROADBAND HIGH LINEARITY AMPLIFIER

The RF3315 is a high-efficiency GaAs Heterojunction Bipolar Transistor (HBT) amplifier packaged in a low-cost surface-mount package. This amplifier is ideal for use in applications requiring high-linearity and low noise figure over the 300MHz to 3GHz frequency range. The RF3315 operates from a singl.

RF3315 Features

* 300MHz to 3GHz

* +40dBm Output IP3

* 12.5dB Gain at 2.0GHz GND

* +23dBm P1dB

* 3.0dB Typical Noise Figure at 2.0GHz

* Single 5V Power Supply 4 1 RF IN 2 GND 3 RF OUT Ordering Information RF3315 Broadband High Linearity Amplifier RF3315PCBA-410

RF3315 Datasheet (228.84 KB)

Preview of RF3315 PDF

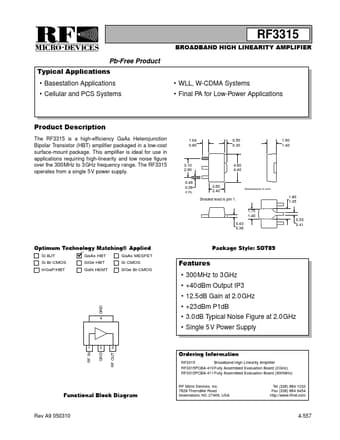

RF3315 Datasheet Preview Page 2 RF3315 Datasheet Preview Page 3

Datasheet Details

Part number:

RF3315

Manufacturer:

RF Micro Devices

File Size:

228.84 KB

Description:

Roadband high linearity amplifier.
