RF3320 - CABLE REVERSE PATH PROGRAMMABLE GAIN AMPLIFIER

RF Micro Devices

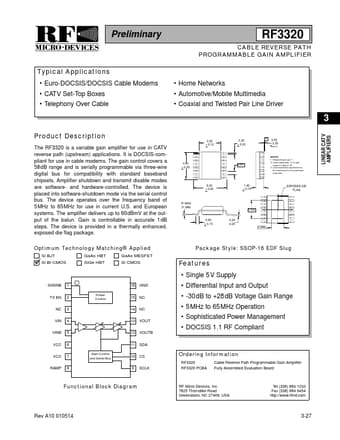

RF3320 Datasheet Preview — Preview of RF3320 PDF

Datasheet Details

Part number	RF3320
Manufacturer	RF Micro Devices
File Size	318.64 KB
Description	CABLE REVERSE PATH PROGRAMMABLE GAIN AMPLIFIER
Datasheet	RF3320_RFMicroDevices.pdf

RF3320 Product details

Description

RF3320 Absolute Maximum Ratings Parameter Supply Voltage Input RF Level Operating Ambient Temperature Storage Temperature Humidity Maximum Power Dissipation Maximum TJ Preliminary Rating -0.5 to +6.0 12 -40 to +85 -40 to +150 80 0.5 150 Unit VDC dBm °C °C % W °C Caution! ESD sensitive device.RF Micro Devices believes the furnished information is correct and accurate at the time of this printing.However, RF Micro Devices reserves the right to make changes to its products without notice.RF

Features

Single 5V Supply.
Differential Input and Output.
-30dB to +28dB Voltage Gain Range.
5MHz to 65MHz Operation.
Sophisticated Power Management.
DOCSIS 1.1 RF Compliant 16 Power Control GND NC NC VOUT VOUTB SDA CS SCLK 15 14 13 12 11 Gain Control and Serial Bus 10 9 Ordering Information RF3320 RF3320 PCBA Cable Reverse Path Programmable Gain Amplifier Fully Assembled Evaluation Board Functional Block Diagram RF Micro Devices, Inc. 7625 T.
