RF3322PCBA CABLE REVERSE PATH PROGRAMMABLE GAIN AMPLIFIER

RF3322PCBA Description

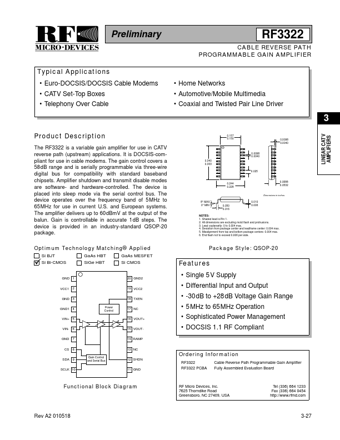

Preliminary RF3322 CABLE REVERSE PATH PROGRAMMABLE GAIN AMPLIFIER 3 Typical Applications * Euro-DOCSIS/DOCSIS Cable Modems * CATV Se.
RF3322 Absolute Maximum Ratings Parameter Supply Voltage (VCC1 and VCC2) Input RF Level Operating Ambient Temperature Storage Temperature Humidity Ma.

RF3322PCBA Features

* Single 5V Supply
* Differential Input and Output
* -30dB to +28dB Voltage Gain Range
* 5MHz to 65MHz Operation
* Sophisticated Power Management
* DOCSIS 1.1 RF Compliant 20 GND2 19 VCC2 18 TXEN Power Control GND 3 GND1 4 VIN+ 5 VINGND CS 6 7 8 Gain

RF3322PCBA Applications

* Euro-DOCSIS/DOCSIS Cable Modems
* CATV Set-Top Boxes
* Telephony Over Cable
* Home Networks
* Automotive/Mobile Multimedia
* Coaxial and Twisted Pair Line Driver 3 0.157 0.150 0.0098 0.0040 The RF3322 is a variable gain amplifier for use in CATV r
