RF3404 - DUAL-BAND/TRI-MODE CDMA LOW NOISE AMPLIFIER/MIXER MODULE

RF Micro Devices

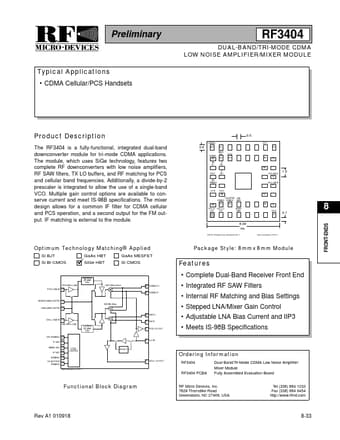

RF3404 Datasheet Preview — Preview of RF3404 PDF

Datasheet Details

Part number	RF3404
Manufacturer	RF Micro Devices
File Size	202.64 KB
Description	DUAL-BAND/TRI-MODE CDMA LOW NOISE AMPLIFIER/MIXER MODULE
Datasheet	RF3404_RFMicroDevices.pdf

RF3404 Product details

Description

CDMAIF+ 0.5 VCC1 The RF3404 is a fully-functional, integrated dual-band downconverter module for tri-mode CDMA applications.The module, which uses SiGe technology,

Features

two complete RF downconverters with low noise amplifiers, RF SAW filters, TX LO buffers, and RF matching for PCS and cellular band frequencies. Additionally, a divide-by-2 prescaler is integrated to allow the use of a single-band VCO. Multiple gain control options are available to conserve current and meet IS-98B specifications. The mixer design allows for a common IF filter for CDMA cellular and PCS operation, and a second output for the FM output. IF matching is external to the module. 0.6 2.
