RF5300 LINEAR POWER AMPLIFIER

The RF5300 is a linear, medium-power, high-efficiency amplifier IC designed specifically for battery-powered WLAN applications such as PC cards, mini PCI, and compact flash applications. The device is manufactured on an advanced Gallium Arsenide Heterojunction Bipolar Transistor (HBT) process, and h.

RF5300 Features

* Single Power Supply 3.0V to 5.0V

* 50 Ω Input/Output Impedance

* 30dB Gain (typ. UNII-1 and 2)

* High Linearity 16 15 14 13 PWR DET VCC1 VCC2 GND GND 1 12 GND

* 4900MHz to 5850MHz Frequency Range RF IN 2 Input Match Interstage Match Interstage Ma

RF5300_RFMicroDevices.pdf

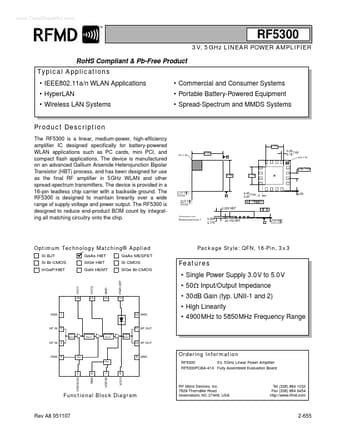

Preview of RF5300 PDF
