RF5322 Datasheet, Amplifier, RF Micro Devices

RF5322 Features

  • Amplifier
  • Single Power Supply 3.0V to 3.6 V
  • 24dB Minimum Gain
  • Input and Output Matched to 50 
  • 2400MHz to 2500MHz Fre- quency Range
  • +18dBm @ <2.5

PDF File Details

Part number:

RF5322

Manufacturer:

RF Micro Devices

File Size:

381.81kb

Download:

📄 Datasheet

Description:

Linear power amplifier. The RF5322 is a linear, medium-power, high-efficiency, two-stage amplifier IC designed specifically for battery-powered WiFi applicat

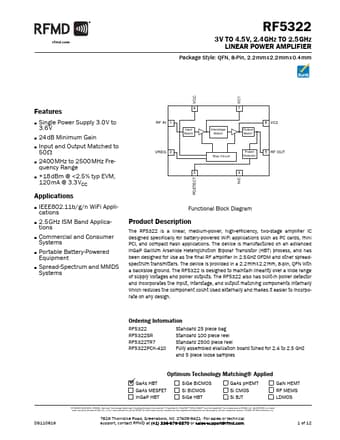

Datasheet Preview: RF5322 📥 Download PDF (381.81kb)
Page 2 of RF5322 Page 3 of RF5322

RF5322 Application

  • Applications
  • IEEE802.11b/g/n WiFi Applications
  • 2.5GHz ISM Band Applications
  • Commercial and Consumer Systems
