RF5345 - 802.11b/g/n WiFi FRONT END MODULE

RF5345 Description

RF5345 2.4GHz TO 2.5GHz, 802.11b/g/n WiFi FRONT END MODULE Package Style: QFN, 16-pin, 3.0mmx3.0mmx0.5mm C_Shared_RX C_RX C_TX BT .
The RF5345 provides a complete integrated solution in a single Front End Module (FEM) for WiFi 802.

RF5345 Features

* Integrated 2.4GHz to 2.5GHz b/g/n Amplifier LNA, SP3T Switch, and Power Detector Coupler
* Single Supply Voltage 3.0V to 4.8 V
* POUT=17dBm, 11g, OFDM at

RF5345 Applications

* Cellular handsets
* Mobile devices
* Tablets
* Consumer electronics
* Gaming
* Netbooks/Notebooks
* TV/monitors/video
* SmartEnergy 16 15 14 13 LNA_BIAS 1 12 C_BT RX_OUT 2 11 ANT TX_IN 3 10 GND VREG 4 9 VCC_2 5678 PDETECT VCC_B VCC_1 NC Functional Block

📥 Download Datasheet

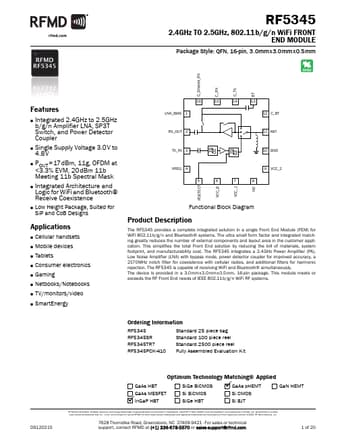

Preview of RF5345 PDF
