RF5355 Datasheet, Amplifier, RF Micro Devices

RF5355 Features

  • Amplifier
  • Single Supply Voltage 3.0V to 5.0 V
  • No external matching components
  • 28dB Typical Gain Across Band
  • POUT=17dBm@<4% TYP EVM across Operating Band

PDF File Details

Part number:

RF5355

Manufacturer:

RF Micro Devices

File Size:

819.29kb

Download:

📄 Datasheet

Description:

5ghz linear power amplifier. The RF5355 is a linear, medium-power, high-efficiency power amplifier IC designed specifically for battery-powered WiFi applications

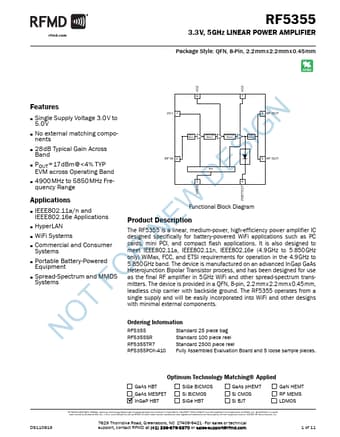

Datasheet Preview: RF5355 📥 Download PDF (819.29kb)
Page 2 of RF5355 Page 3 of RF5355

RF5355 Application

  • Applications
  • IEEE802.11a/n and IEEE802.16e Applications
  • HyperLAN
  • WiFi Systems
  • Commercial and Consumer System

TAGS

RF5355
5GHz
LINEAR
POWER
AMPLIFIER
RF Micro Devices
