SGB2400 Datasheet, Amplifier, RF Micro Devices

SGB2400 Features

  • Amplifier
  • High Reliability SiGe HBT Technology
  • Robust Class 1C ESD
  • P1dB = 6.9dBm at 1950MHz
  • IP3 = 18.0dBm at 1950MHz
  • Die Size: 0.75mm x 0.70mm Ap

PDF File Details

Part number:

SGB2400

Manufacturer:

RF Micro Devices

File Size:

113.83kb

Download:

📄 Datasheet

Description:

Dc to 4ghz active bias sige hbt mmic amplifier. RFMD’s SGB2400 is a high performance Darlington SiGe HBT MMIC amplifier with on-chip active bias circuitry. The active bias network p

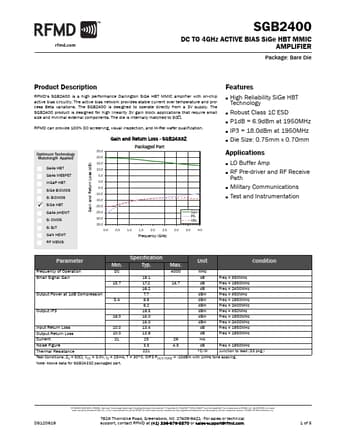

Datasheet Preview: SGB2400 📥 Download PDF (113.83kb)
Page 2 of SGB2400 Page 3 of SGB2400

SGB2400 Application

  • Applications that require small size and minimal external components. The die is internally matched to 50. RFMD can provide 100% DC screening, vis
