SGB20N60 Fast S-IGBT in NPT-technology

SGP20N60 SGB20N60, SGW20N60 Fast S-IGBT in NPT-technology 75% lower Eoff compared to previous generation combined with low conduction losses Short circuit withstand time 10 µs Designed for: - Motor controls - Inverter NPT-Technology for 600V applications offers: - very tight parameter distribution - high ruggedness, temperature stable behaviour - parallel switching capability C G E Type SGP20N60 SGB20N60 SGW20N60 VCE IC VCE(sat) Tj Package 6.

SGB20N60 Datasheet (263.47 KB)

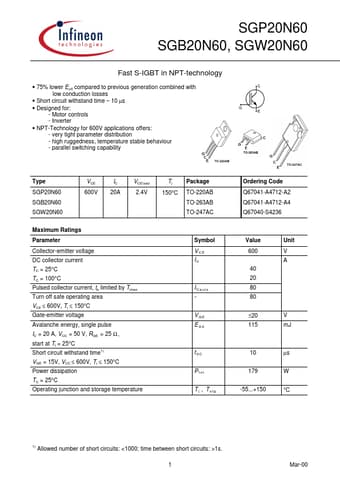

Preview of SGB20N60 PDF

Datasheet Details

Part number:

SGB20N60

Manufacturer:

Infineon ↗

File Size:

263.47 KB

Description:

Fast s-igbt in npt-technology.
