SXA-389 - MEDIUM POWER GaAs HBT AMPLIFIER

RF Micro Devices

📥 Download Datasheet

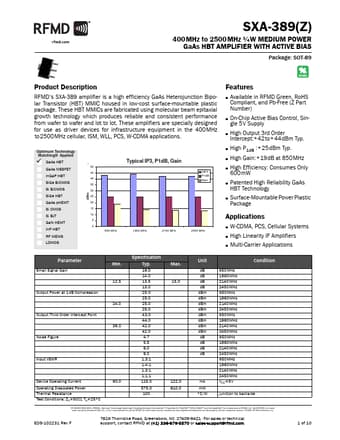

SXA-389 Datasheet Preview — Preview of SXA-389 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SXA-389
Manufacturer	RF Micro Devices
File Size	333.58 KB
Description	MEDIUM POWER GaAs HBT AMPLIFIER
Datasheet	SXA-389-RFMicroDevices.pdf

SXA-389 Product details

Description

RFMD’s SXA-389 amplifier is a high efficiency GaAs Heterojunction Bipolar Transistor (HBT) MMIC housed in low-cost surface-mountable plastic package.

Features

Available in RFMD Green, RoHS Compliant, and Pb-Free (Z Part Number).
On-Chip Active Bias Control, Single 5V Supply.
High Output 3rd Order Intercept:+42to+44dBm Typ.
High P1dB :+25dBm Typ.
High Gain:+19dB at 850MHz.
High Efficiency: Consumes Only 600 mW.
Patented High Reliability GaAs HBT Technology.
Surface-Mountable Power Plastic Package.
