GS2JA, GS2AA Surface Mount General Purpose Rectifier

RFE

Description

Surface Mount General Purpose Rectifier GS2AA Through GS2MA (SMA) .

📥 Download Datasheet

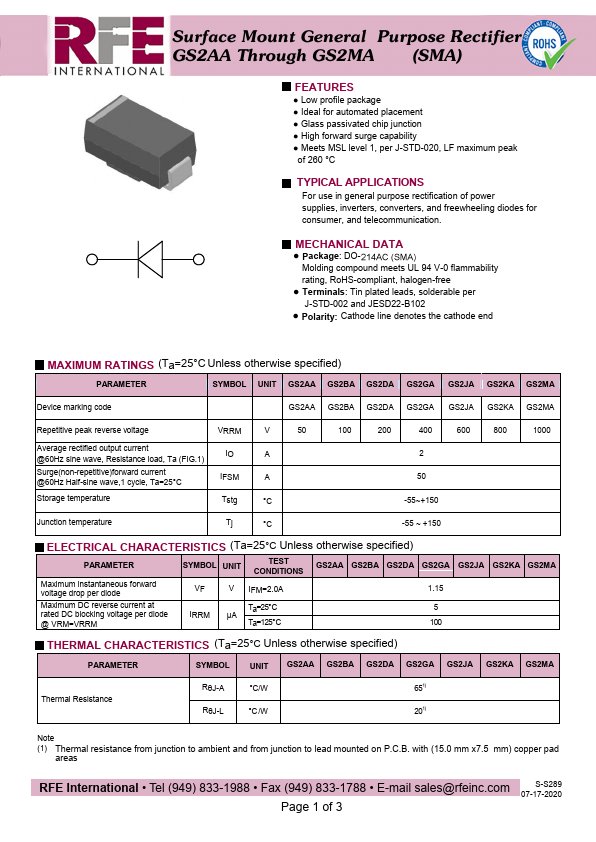

GS2JA Datasheet Preview — This datasheet PDF includes multiple part numbers: GS2JA, GS2AA. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: GS2JA, GS2AA
Manufacturer: RFE
File Size: 1.40 MB
Datasheet: GS2AA-RFE.pdf
Description: Surface Mount General Purpose Rectifier
Note: This datasheet PDF includes multiple part numbers: GS2JA, GS2AA.
Please refer to the document for exact specifications by model.

Features

* Low profile package
* Ideal for automated placement
* Glass passivated chip junction
* High forward surge capability

Applications

* For use in general purpose rectification of power supplies, inverters, converters, and freewheeling diodes for consumer, and telecommunication. MECHANICAL DATA
* Package: DO- Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free
* Terminals: Tin plated leads, sol
