RF3237

QUAD-BAND GSM/GPRS

RF3237 Features

* High Efficiency at Rated POUT VBATT = 3.5V GSM850/EGSM900 = 43% DCS1800/PCS1900 = 36%

* Integrated Power Flattening Circuit

* Integrated VBATT Tracking Circuit

* 8kV Robust ESD Protection at Antenna Port

* No External Routing

* No External DC Blocking Needed on TRx Ports

RF3237 General Description

The RF3237 is a quad-band (GSM850/EGSM900/DCS1800/PCS1900) GSM/GPRS Class 12-compliant transmit module with four transmit/receive ports for UMTS use that also serve as GSM Rx ports. This transmit module builds upon RFMD's leading PowerStar® integrated power control technology, SOI (silicon-oninsulat.

RF3237 Datasheet (135.24 KB)

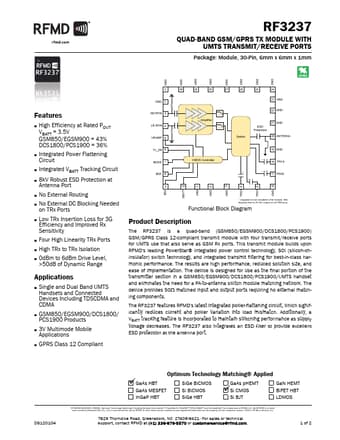

Preview of RF3237 PDF

Datasheet Details

Part number:

RF3237

Manufacturer:

RFMD

File Size:

135.24 KB

Description:

Quad-band gsm/gprs.
RF3237QuadBand GSM/GPRS Tx module with UMTS transmit/receive ports RF3237 QUAD-BAND GSM/GPRS TX MODULE WITH UMTS TRANSMIT/RECEIVE PORTS Package: M.
