RF3220 Datasheet - RF Micro Devices

HIGH LINEARITY/DRIVER AMPLIFIER

RF3220 Features

* 500MHz to 2GHz

* +40.8dBm Output IP3

* +14.2dB Gain at 1850MHz BIAS GND GND

* +12.4dBm Input P1dB at 1850MHz

* 2.8dB Noise Figure at 1850MHz 9 GND 8 RF OUT 7 GND 12 GND 1 RF IN 2 GND 3 4 GND 11 10

* Single 5V Power Supply 5 GND 6 GND Order

RF3220 General Description

The RF3220 is a high-efficiency GaAs Heterojunction Bipolar Transistor (HBT) amplifier packaged in a low-cost surface-mount package. This amplifier is ideal for use in applications requiring high-linearity and low noise figure over the 500MHz to 3GHz frequency range. The RF3220 operates from a singl.

RF3220 Datasheet (188.49 KB)

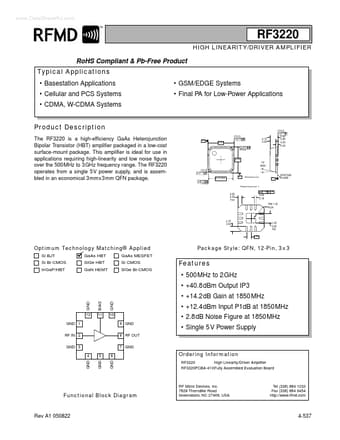

RF3220 Datasheet Preview — Preview of RF3220 PDF

Datasheet Details

Part number:

RF3220

Manufacturer:

RF Micro Devices

File Size:

188.49 KB

Description:

High linearity/driver amplifier.
www.DataSheet4U.com RF3220 0 RoHS Compliant & Pb-Free Product Typical Applications Basestation Applications Cellular and PCS Syst.
